Straighten Out the Steering Wheel

After replacing the steering shaft (Read all about it) my steering wheel had a slight left turn to it. Fortunately, it's easy to correct with a wrench and a pipe wrench.

Start by getting your supervisor setup to ensure you do quality work. Oh, also make sure when you pull into your parking location you let the wheel self centre while moving forward to make sure you're going dead straight (or as close as possible)

Loosen off the two nuts holding the adjusting collar, and start making VERY small adjustments with a pipe wrench on the collar. Check the steering wheel frequently (or have a helper) to make sure you're going in the right direction and that you're getting close to centre.






Once done, tighten up the nuts and celebrate with a smile and a Jeep wave

Jeep TJ Upper Steering Shaft Replacement

There comes a time in every Jeep life, when a u joint goes. In this case, mine was on my upper steering shaft. In Jeep engineer wisdom, the joint is not a serviceable/replaceable part. I had to replace the entire shaft. That in itself proved to be a difficult pIart to find. I was finally able to source it via Amazon.ca in the form of a Crown Automotive 5102531AA Steering Shaft. It's a simple two bolt process to replace it, and aside from bending in ways that I didn't think my body could bend, and a buggered thread that needed tapping, it was an easy swap

Engine compartment bolt

Undo the bolt on the joint by the firewall. Start the jeep and turn the steering wheel about a quarter turn to access the inside bolt. Under the dash, get your socket on the bolt and undo it.

Potato quality short under the dash

Slide the shaft off in the engine compartment, and off the splined shaft under the dash. Pull the shaft into the cab and it'll pop through easily.

Old vs New shaft

Get your new shaft, repeat the process and tighten your bolts down. Just remember, when the shaft is disconnected, do not let the steering wheel spin, as you'll break your clock spring and mess up signals and air bag. I used a bungee cord to hold the wheel from turning.

You can kinds see the gap in the u joint pinion

Rough Country Trackbar Tie Rod End Replacement

A while back I had the misfortune of hearing a clunk coming from under my Jeep, while also feeling the steering not quite working right. Fortunately, I was a couple blocks from home and made it into the driveway safely. What I found was a blown out tie rod end on my Rough Country track bar. Fortunately it uses the same TRE as the drag link, and I was able to source one same day at NAPA.

Removing the rusted up cotter bit and nut required the use of a cut off disc on my Dremel, and a little pounding. Once out, I was able to remove the TRE with some heat and a large pipe wrench.

When I put it back together, I made sure to be generous with my anti-seize to ensure that in the future, this is easier to do.

One thing I ran into, was that the hole on the frame mount was wallowed out a bit. Using some grade 8 washers, I was able to pull the TRE up enough to make it nice and tight.

Hand Throttle or Redneck Cruise Control

Simple bike shifter

One of the nice things about an automatic, is that it doesn’t require two feet to drive. It also gives you a spare when you need to hold the brake and hit the gas for a tricky climb. With my manual, when I’m sitting on a hill, sometimes a third foot comes in handy. In that thought, I installed a hand throttle using a bike shifter and cable, plus some bits and pieces. It’s also great on the rocks, as it keeps the throttle set so that I’m not modulating the gas as I bounce around. On highways, it makes a great redneck cruise control, but I don’t suggest you do that, as it doesn’t disengage like factory cruise control.

Cable running through new hole in throttle cable bracket

Connected to throttle.
Apparently this is where factory cruise control connected

Happy 4th of July

Have a safe and happy 4th of July my American Friends and Readers

Oh say can you see by the dawn's early light,

What so proudly we hailed at the twilight's last gleaming,

Whose broad stripes and bright stars through the perilous fight,

O'er the ramparts we watched, were so gallantly streaming?

And the rockets' red glare, the bombs bursting in air,

Gave proof through the night that our flag was still there;

O say does that star-spangled banner yet wave,

O'er the land of the free and the home of the brave?

Happy Canada Day

To my fellow Canadians, both Jeep drivers and non-Jeep drivers. Have a safe and happy Canada Day

O Canada!

Our home and native land!

True patriot love in all thy sons command.

With glowing hearts we see thee rise,

The True North strong and free!

From far and wide,

O Canada, we stand on guard for thee.

God keep our land glorious and free!

O Canada, we stand on guard for thee.

O Canada, we stand on guard for thee.

Ô Canada!

Terre de nos aïeux,

Ton front est ceint de fleurons glorieux!

Car ton bras sait porter l'épée,

Il sait porter la croix!

Ton histoire est une épopée

Des plus brillants exploits.

Et ta valeur, de foi trempée,

Protégera nos foyers et nos droits.

Protégera nos foyers et nos droits.

$15 and 15 minutes to improved Jeep Security

We're all aware of the big red steering wheel locks out there. Designed to lock your steering wheel and prevent theft. I am guilty of running one on my old Jeep. Even though I do know that they're easy to defeat and only deter opportunistic theft.

With the TJ, I went to a RFID based secondary starting system. Not Sentry Key, but my own home build system. I'll cover it in a future post.

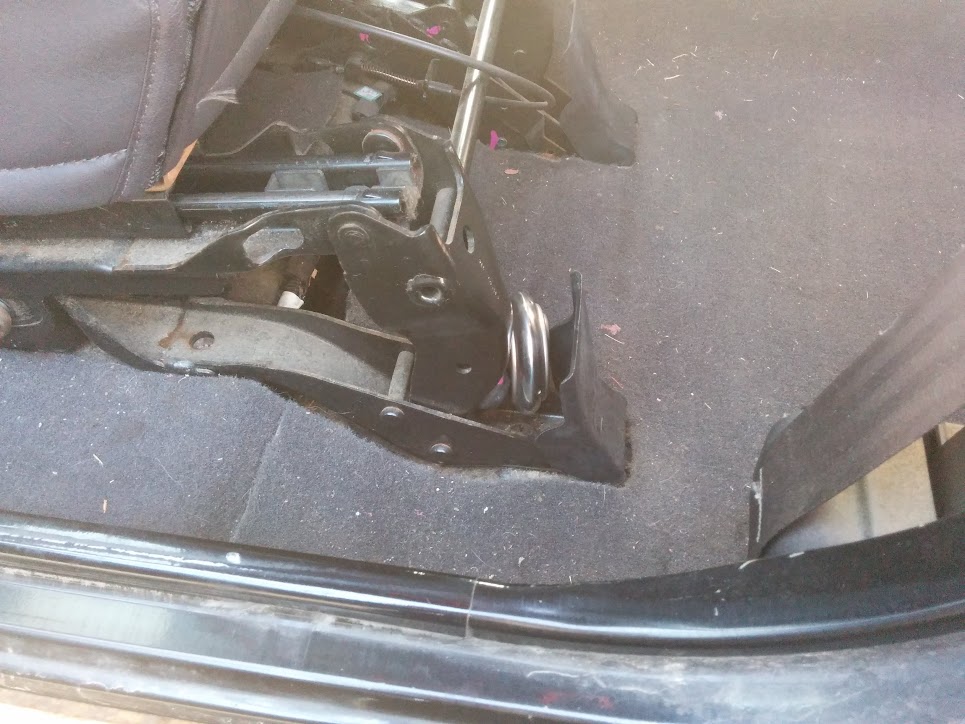

For the quick security, I went about as simple as you can. I put a padlock on my Jeep. It's really quite simple. I went with a Brinks shackle style lock. I put the drivers side seat forward and leaning against the steering wheel. Once set in that position, I drilled the base with a hole big enough for the lock. It's down near the floor of the Jeep, and behind the little spring plate cover. Once the lock is in place, it's impossible to move the seat back. I doubt bolt cutters could get onto the shackle, and without a torch or cut off tool, the lock is staying put.
